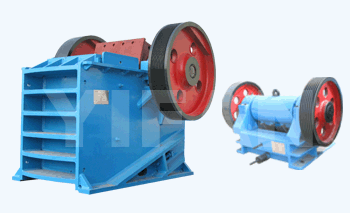

PE /PEX Series Jaw Crusher Jaw Crusher      PE/PEX Series Jaw Crusher has the features of high crushing and even product size ratio. It can be used to crush material, whose compression strength is not more than 320Mpa.
     PE Series is used in primary crushing, while PEX series is used in secondary crushing and fine crushing.
Jaw Crusher

Features and Benefits:
Simple structure and reliable operation
Easy maintenance and low operating cost

Model Size of Feed Opening(mm) Max Feed Size (mm) Discharge Range Opening (mm) Capacity (m3/h ) Motor Power（kw）
PE-250×400 250×400 210 20-60 3-13 15
PE-400×600 400×600 340 40-100 10-35 30
PE-500×750 500×750 425 50-100 25-60 55
PE-600×900 600×900 500 65-180 30-85 55- 75
PE-750×1060 750×1060 630 80-180 72-150 110
PE-800×1060 800×1060 680 100-200 85-143 110
PE-870×1060 870×1060 750 170-270 145-235 110
PE-900×1060 900×1060 780 200-290 170-250 110
PE-900×1200 900×1200 780 95-225 100-240 110
PE-1000×1200 1000×1200 850 195-280 190-275 110
PE-1200×1500 1200×1500 1020 150-300 250-500 160
PEX-150×750 150×750 120 18-48 5-16 15
PEX-250×750 250×750 210 25-60 8-22 22
PEX-250×1000 250×1000 210 25-60 10-32 30-37
PEX-250×1200 250×1200 210 25-60 13-38 37
PEX-300×1300 300×1300 250 20-90 10-65 75
