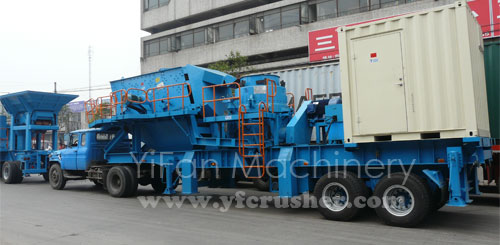

Mobile Cone Crusher

Cone crusher and Circular Vibrating Screen are the unit of fine crushing and screening. They compose the Mobile Crusher( fine crushing unit). Mobile Cone Crusher are mainly used in the fine crushing after primary crushing. It is used in crushshing hard and abrasive materials. The capacity range of Mobile Cone Crusher is 50—250t/h.
1. Mobile Cone Crusher Application
The Mobile Cone Crusher(mobile crushing and screening plants) is applied to multistage crush large materials, and then screen the discharges according to their different specifications. The whole set plants is widely used to mine, building material, highway, rail way and hydropower industries, etc., finish crushing and screening operations at one time, produce required size and output for consumers.
2. Mobile Stone Crusher Features and Benefits
The Mobile Cone Crusher(plants) has the advantage of reasonable matching, unobstructed discharge all line, reliable working, convenient operation, high efficiency and saving energy. Especially the mobility is very good, so it can extend with the raw material places or the construction place, and it can also make multiple matching, get to different product requirements.
3.Mobile Cone Crusher Composition and working principle
The Mobile Cone Crusher(mobile crushing and screening plants) is composed of primary crushing and screening station and secondary one, belt conveyor, etc. Every crushing station is an independent working unit, they can respectively assume their different responsibility, and the belt conveyer is responsible for material transmitting and piling up between each crushing station.

Technical Data:

PP CONE PLANTS	PP120SMHS	PP180SMHS	PP180SMH	PP250SMHS	PP250SMH
Transport dimensions
Length（mm）	11200	11800	10000	12300	10816
Width（mm）	2743	2743	2480	2900	2743
Height（mm）	4200	4200	4160	4200	4160
Weight（kg）	28400	30500	22400	48700	35700
Axle weight（kg）	15500	16300	14300	31100	22900
King pin weight（kg）	12900	14200	8100	17600	12800
CONE CRUSHER
Model	SMH120	SMH180	SMH180	SMH250	SMH250
Feed opening（mm）	160	180	180	240	240
Setting range(c.s.s)（mm）	22-32	22-32	22-32	26-51	26-51
SCREEN
Model	3YK1545	4YK1548		4YK1848
BELT CONVEYOR
Model			B800×8		B1000×8
