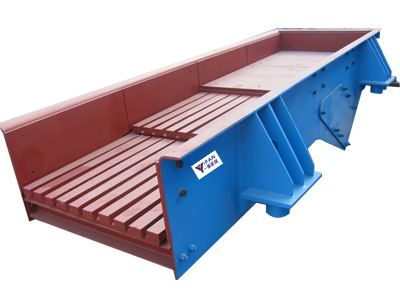

GZT Series Vibrating Feeder

Vibrating Feeder,GZT Vibrating Feeders,GZT Series Grizzly Vibrating Feeders,GZT Vibrating Feedering
Author:admin       Hits:

Feed size :450-1000mm. Production capacity :30-600m ³ / h.
Adapt materials: iron ore, copper ore, slag, slag, pebbles, quartz, granite, basalt, diabase, urban construction waste.Applications: used in the industries of metallurgy, coal mining, mineral processing, building materials, chemicals, abrasives crushing and screening plants.

GZT Series Vibrating Feeder technical parameters
GZT series vibrating feeder is the digestion and absorption of technology design and manufacturing in Sweden, Finland, and the introduction of Japanese technology to produce vibration motor as vibration source.

GZT series vibrating feeder works:
GZT Series vibrating feeder mainly by a pair of identical to the performance parameters of the vibration motor as the excitation source, when the two vibrating motors with the same angular velocity for the reverse operation, the inertia force generated by the eccentric block is repeated in a particular phase superimposed or offset. Thus to huge synthetic excitation power, the body support spring forced vibration, and vibration as the driving force to drive the material in the chute for sliding and throwing motion, so that materials continue to move forward and achieve the purpose of feeding. When the material through the slot on the screen bars, smaller material falls through the sieve of the gap, not after crushing process under the Road, play the effect of screening.

GZT Series Vibrating Feeder Scope:
Vibrating feeder in the production process can be massive, granular materials from storage silos in uniform, regular, to go to by the feeding device for crushing machinery, sand production line, continuous and uniform feed the coarse screening materials, and materials, widely used in the industries of metallurgy, coal mining, mineral processing, building materials, chemicals, abrasives broken screening plants.

GZT Series the vibrating feeder performance characteristics:
1, GZT series vibrating feeder products a wide range of inpidually designed according to user requirements, specializes in manufacturing;
2, All models of feeder, can be easily implemented manually or automatically controlled feeding capacity;
3, Smooth vibration, reliable operation, long life;
4, Can adjust exciting force can be changed at any time and control flow, easy to adjust and stable;
5, vibration motor as vibration source, low noise, low power consumption, good regulating performance, no red material phenomena;
6, Simple structure, reliable operation, adjust the easy installation;
7, Light weight, small size, easy maintenance, to prevent dust pollution when using the enclosed structure fuselage.

GZT Series Vibrating Feeder Technical Data:

Model Max feed size (mm) Capacity(t/h) Motor(KW) Installation slope(°) Weight(kg) Double Amplitude(mm) Overall Dimensions(LxWxH)(mm)
GZT-0724 450 30-80 2x1.5 10 1023 4-6 2481x1130x1037
GZT-0932 560 80-150 2x2.2 10 2248 4-8 3298x1512x1141
GZT-0940 560 80-180 2x3.7 10 3700 4-8 4100x1818x1134
GZT-1148 600 150-300 2x5.5 10 4892 4-8 4926x1676x1479
GZT-1256 800 180-400 2x12 10 6764 4-8 5704x1840x1707
GZT-1560 1000 400-600 2x13 10 9185 4-8 6126x2208x1588
Note:Capacities are relative to physical character and type of feeding,feeding size and composition and so on.
