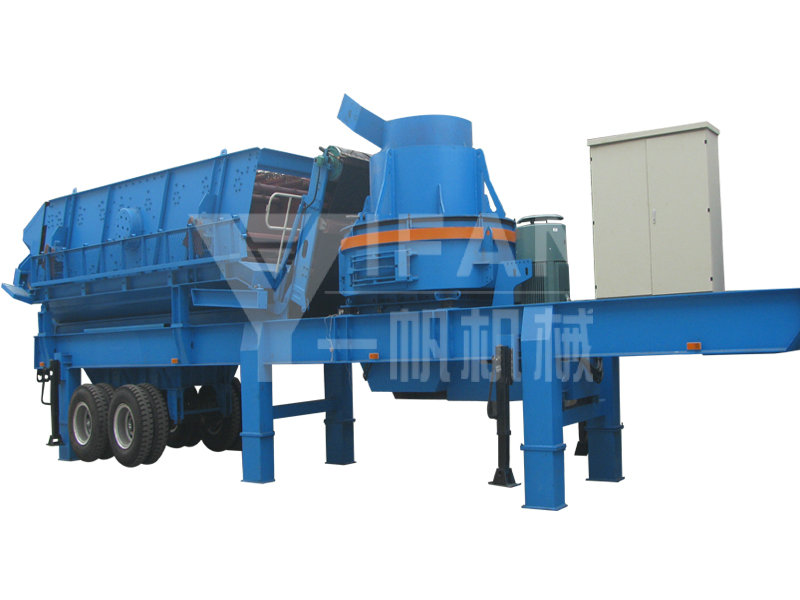

Vertical Impact Mobile Crusher

Vertical impact mobile crushing plant station,Vertical impact crusher
Author:admin       Hits:

Feed size :65-80mm .Production capacity :80-250t / h .
Crushing materials: river pebbles, rocks (limestone, granite, basalt, diabase, andesite), ore tailings, the artificial sand stone chips . Application areas: mines, coal mines, tailings and construction waste recycling, earthwork, urban infrastructure, roads or construction sites and site operations .

Vertical impact mobile crushing plant station summary:
Vertical impact mobile crushing plant equipped with The Yifan mechanical high performance impact crusher (sand making machine) and vehicle-mounted feeder vibrating screen and high-strength. Short length, light weight; maneuverability and adaptability, reduce material transportation cost combination of flexibility - whether rough waves, crushing or sand making job, can bring you unexpected results.

Vertical impact mobile crushing plant station features:
1, with the high-performance crusher
2 car feeder, vibrating screen, belt conveyor
3, pulling the steering shaft to facilitate road transport
4 car installation support, equipment, site installation fast and convenient
5, supporting the installation of motor and control box integration

Vertical impact mobile crushing plant station structure:
Impact all parts of the mobile crushing plant fully airborne, including: solid rack, impact crusher, feeder, vibrating screen, conveyor belts, motors and control boxes and other.

Vertical impact mobile crushing plant station works:
Material through the feeder preselected by the impact crusher sand production, to form a closed-circuit system through the vibrating screen materials cycle broken, can effectively Festival less system sand processing sectors, the finished material by conveyor output, continuous crushing job .

Vertical impact mobile crushing station purposes and use:
1. has been widely used in mines, coal mines, rubbish and construction waste recycling re-use, earthwork, urban infrastructure, roads or construction sites and site operations.
2. Topsoil and a variety of other materials; separation viscous to coagulation aggregate; construction and demolition industry; broken after the screening; quarrying industry.
3. River pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, stone chips.

Vertical Impact Mobile Crusher Technical Data:

Category Model
Product Name PP5000VS PP5000VS33S PP6000VS PP6000VS42S PP6000VS43S PP7000VS PP7000VS51S PP7000VS52S
Transport dimensions
Length 9800 11280 11500 15470 15050 11000 15420 14980
Width 2490 2780 2780 2780 2780 2780 2780 3100
height 4200 2500 2850 4180 4380 3820 3250 4170
Weight 21.6 28 20 32.6 32.9 23.2 32.7 38.7
Axle load 14.6 19.2 14 22.3 23.8 15 21.1 27.5
Kingpins/Axle load 50/7.0 50/8.8 50/6.0 50/10.3 50/9.1 50./8.2 50/11.5 90/11.2
Vertical Impact crusher
Model VS5000BD VS5000BD VS5000BD VS6000BD VS6000BD VS7000BD VS7000BD VS7000BD
Max feed size 65(80) 65(80) 65(80) 70(100) 70(100) 70(100) 70(100) 70(100)
Yieldm(m³/h) 80-150 80-150 80-150 120-250 120-250 180-350 180-350 180-350
vibrating screen
Model / 3YK1545 / 2YK1860 3YK1860 / YK2160 2YK2160
belt conveyor
Model B650X6.5Y B800X7.2Y B800X6.7Y B1000X8.6Y B800X7.4Y B1000X6.4Y B1000X8.6Y B1000X8.2Y
Axis Number
Model Uniaxial Biaxial Biaxial Biaxial Biaxial Biaxial Biaxial Triaxial
