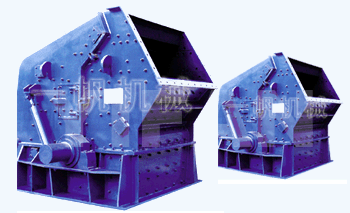

PF Series Impact Crusher

impact crusher,impactor crusher,counterattack impact crusher,impact crushers
Author:admin       Hits:
Feed size: ≤ 1000mm Production capacity :15-850 (t / h).
Crushing materials: granite, limestone, concrete, lime, gypsum, slaked lime.Applications:Artificial aggregate production, highway, railway, construction of hydroelectric dam area.

PF Series Impact Crusher is a new product on the basis of absorbing domestic and foreign advanced technology carefully designed. The family of devices can handle particle size of not more than 500 mm, not more than 320 MPa compressive strength materials (granite, limestone, concrete, etc.), the impact crusher for its excellent performance and good performance, widely used in the production of high-grade roads, water, electricity, artificial aggregates, crushing, construction and other industries with stone.

PF series impact crusher feed size ideal for 100-500mm, shall not exceed the specified value. Discharging granularity user according to need to adjust the hammer and the counter plate, the average gap between the setting member is reached.

Impact crusher works:

The PF series by impact crushing materials, work, driven by the motor, the high-speed rotation of the rotor of the impact crusher material into the plate hammer on the rotor impact crusher, and then be countered to the liner again broken Finally, from the discharge port. The user can adjust the gap between the counterattack frame and rotor frame can be reached to change the purpose of material discharging size and material shape.

Crusher performance characteristics:

1. Multi-cavity uniform crushing, suitable for crushing hard rock;
2. low feed inlet, ease of production line layout and increase the size of the feed;
3. new wear-resistant material of the plate hammer, counterattack plate and liner last longer;
4. High chrome hammer, unique counterattack lining, especially suitable for hard rock crushing, energy efficient;
5. Hard rock crushing, energy efficient;
6. are the entire board structure, nesting was small particle size and the cube-shaped, without internal pattern;
7. Cubic shape nesting particle size adjustable;
8. simplified crushing process;
9. full hydraulic opening, ease of maintenance and replacement of wearing parts

PF Series Impact Crusher Technical Data:

Model Specifications(mm) feed size(mm) Max feed size(mm) Yield(t/h) Power(kW) Overall dimensions(mm) Weight(t)
PF-1007 ø1000×700 400×730 300 30-50 37-55 2400×1558×2660 9.5
PF-1010 ø1000×1050 400×1080 300 50-80 55-75 2400×2250×2620 11.6
PF-1210 ø1250×1050 400×1080 350 95-145 110-132 2690×2338×2890 14.9
PF-1214 ø1250×1400 400×1430 350 130-180 132-160 2640×2370×2890 17.1
PF-1310 ø1300×1050 490×1170 400 80-140 110-160 2640×2720×2890 16.2
PF-1315 ø1320×1500 860×1520 500 160-250 160-200 3096×3273×2667 19.3
PF-1415 ø1450×1500 1145×1520 950 220-450 220-315 3745×3022×3519 27
PF-1520 ø1520×2000 830×2050 700 300-550 315-440 3581×3560×3265 38.7
PF-1818 ø1800×1800 1600×1850 1000 600-850 650-900 4180×4200×4900 75
